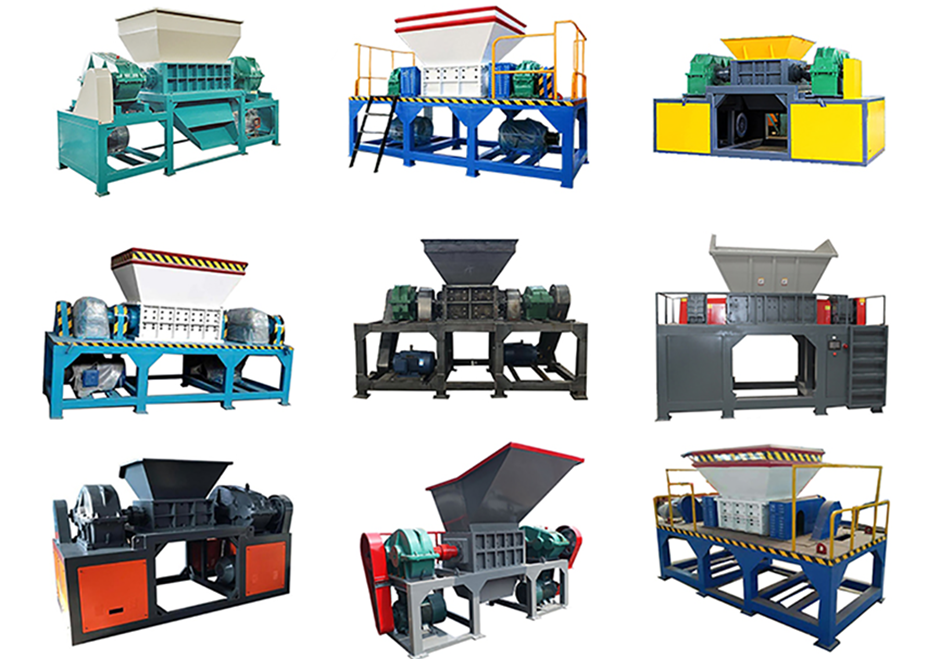

      Tire crusher

The waste tire crusher shreds the material through the relative rotation of the two sets of cutter shafts, the mutual shearing between the movable knife blade, the cutter head and the spacer sleeve. The discharge control of the double-shaft shredder adopts a mesh design, and the width and length of the discharge are determined by the width of the cutter and the distance of the cutter head. Two sets of cutter shafts rotate at different speeds to cut and shred materials at the same time, which improves the shredding efficiency. This shredder is widely used for waste plastic, rubber, wood and other bulky waste. According to the actual situation, we carry out improvement, research and development, and introduce mature technology and advanced design of double-shaft shredder series. Waste recycling is used for our pre-shredding, and volume reduction processing provides high-quality and reliable equipment.

Quran Tire crusher

The main technical parameters:

Model Main power Prodactivity Crushing chamber Size Dimensions Hopper size
QRS600 15KW*2 2-5T/H 600*550MM L2500*W1500*H1900 800*900MM
QRS800 22KW*2 4-8T/H 800*750MM L3200*W1750*H2300 900*1000MM
QRS1000 37KW*2 8-15T/H 1000*850MM L4200*W1800*H2500 1000*1200MM
QRS1200 45KW*2 15-20T/H 1200*950MM L4500*W1900*H2800 1000*1400MM
QRS1400 55KW*2 20-25T/H 1400*1050MM L5000*W2000*H3000 2000*2000MM
QRS1600 75KW*2 25-35T/H 1600*1150MM L5500*W2000*H3300 2000*2300MM
QRS1800 90KW*2 35-50T/H 1600*1150MM L6000*W2200*H3500 2000*2300MM

            Safety maintenance of tire crusher

First of all, the blade grinding of the tire shredder blade is a bit different from other knives. Due to its own particularity, a team should be invited to carry out the actual repair process. The general tool can use a grinder, or use the cutting edge for partial grinding, but the shredder blade has a special structure, and there is no way to repair it with a general grinder. Causes a significant impact on the blade. Therefore, in the actual repair process, we must pay attention to choose the repair according to the actual situation, and ask the repairing team to help repair and ensure our own benefits.
Secondly, polishing the tire shredder blade is still quite good. Now there are many such repair teams, and the repair of the tire shredder blade can also be done in different ways. Generally speaking, the wear of the blade is mainly concentrated on the claws, so the simple grinding method is to use a polishing machine to grind the inside of the blade to make the blade sharper, but pay attention to the arc of the blade. The line must be grasped well, so that the shredder can have a better use effect.

       Features of tire crusher

1. The crushing chamber adopts a split structure, which is convenient for installation and maintenance, and has a compact equipment structure.
2. The cutting edge of the cutter head is made of special hard alloy material, and after subsequent special high hardness and high wear resistance treatment, the worn part of the cutter head can be quickly replaced in a short time, which solves the problem that the cutter head is difficult to replace after wear and tear. Hard-to-fix, high-cost puzzles. It has the advantages of long service life, high efficiency and convenient replacement.
3. The planetary gear reducer with high efficiency, stable operation, low noise and high torque is adopted, which is easy to operate and has higher safety.
4. The circular mesh screen is a steel wire mesh structure, with a large blanking area, which is conducive to the classification of qualified rubber blocks, and avoids repeated crushing of qualified rubber blocks in the crushing cavity to reduce the output. The equipment has low energy consumption and high efficiency.
